Characteristics and scope of application
Strength and hardening of high performance, after quenching and low-temperature tempering, can get good comprehensive mechanical properties and low-temperature impact toughness, no temper brittleness and should, therefore, be of secondary quenching to improve toughness in the center, unfavorable cooling quenching, cold deformation plastic high, cold drawing, the high temperature normalizing and tempering, good processability, good weldability. Welding should generally be preheated to 100 to 150 DEG C and is generally regarded as penetration of carbon steel
Heat treatment and metallurgical structure:
Specification of heat treatment: hardening 880ºC for the first time, 780~820ºC, water cooling, oil cooling; tempering 200ºC water cooling, air cooling.
1.International Standard
GB | AISI | JIS |
20CrMnTi | - | - |
2.Chemical Composition(Wt%) :3.Available Size(mm) :
Mn | S | P | Cr | Ni | Cu |
0.60-0.90 | Max 0.030 | Max 0.030 | 0.90-1.20 | Max 0.25 | Max 0.030 |
Flat Bar Size(mm) | Round bar Size(mm) | |||
Thickness | Width | Length | Diameter | Length |
10-700 | 155-2200 | 2000-6000 | 20-200 | 3000-550 |
4.Product Process:
Electric-Furnace Smelting(EF)→Ladle Furnace(LF)→Vacuum Degassing(VD)→ Argon protected ingot →Multidirectional Forging → (Concave forging →)Normalizing+Hydrogen Diffusion Annealing → Ultrasonic Flaw Detection →Queching+Tempering Prehardened
5. Mechanical Property:
Tensile strength σb (MPa) | Yield Strength σs 0.2 (MPa) | Elongation δ 5 (%) | Reduction of crosssection area ψ (%) | Ballistic work Akv (J) | Pounding toughness value αkv (J/cm2) | Hardness (HB) | Specimen Size |
Min 835 | Min 540 | Min 10 | Min 40 | Min 47 | Min 59 | Max 179 | 15mm |
HK JIMI STEEL Was established in 2012, located in the Shunde District of Guangdong Province, It is an import and export trading company mainly engaged in advanced special steel, die steel, alloy steel, and steel processing general machinery and equipment. The company adheres to the concept of "high quality, high requirements and good faith",
Cooperating with more than 20 famous steel mills in China, rich in spot stock of products.
Our company has a variety of processing equipment and all kinds of inspection and testing equipment, such as horizontal sawing machine, vertical sawing machine, milling machine, bilateral milling machine, precision milling machine, plane grinder and so on. The products with short producing time, excellent quality and high precision can provide a high-quality product choice for the vast number of customers at home and abroad.
Our customer group spread all over the domestic provinces and cities, abroad including Europe, the United States, Australia, the Middle East, Southeast Asia and other more than 20 countries and regions, along with over 100 long-term stable cooperation customers...Choosing Xingxiong will bring you a better experience.
PLASTIC MOULD STEEL: 1.2311, 1.2312, 1.2738, P20, 1.2083, 1.2316, NAK80, P40, 1.2738HH
HOT WORK MOULD STEEL: 1.2344, SKD61, H13, H11, FDAC, 8407
COLD WORL MOULD STEEL: SKD11, D3, SKS3, 1.2080, 1.2379, CR12MOV, O1, D2
STRUCTURAL ALLOY STEEL: 4140, 20CR, 40Cr, 35CrMo, 42CrMo, 38CrmoAi, SCM440, SCM420, 1.7225
CARBON STEEL &: Q235, Gcr15, S45C, S50C, S55C
CNC surface grinding machine, NC side boring machine, Band saw, CNC double head machine, Vertical Band saw, CNC milling machine, Double alloy saw blade, wireless remote control crane, Magnetic chuck.
A. Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc
B. Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc
Widely used in a die casting mold, hot extruding die, brass casting die, high strength plastic dies, etc.

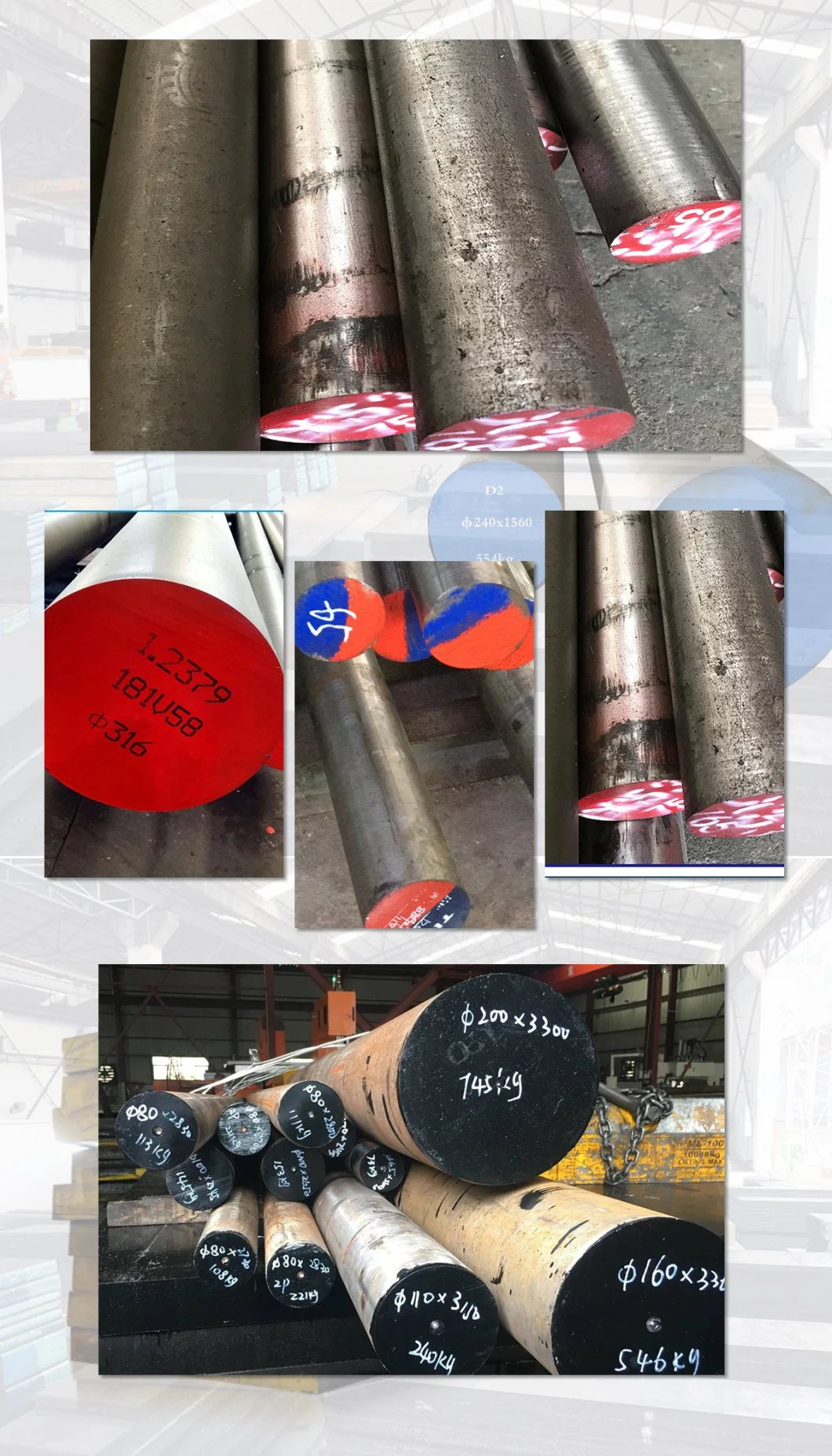

High-quality stock for various steel flat bars and round the bar.
Alloy steel / Cold work steel / Hot work steel / Plactic mold steel and Stainless
Hot sales grade : DC53/ H13 / P20 / SCM440 / Q235,etc.

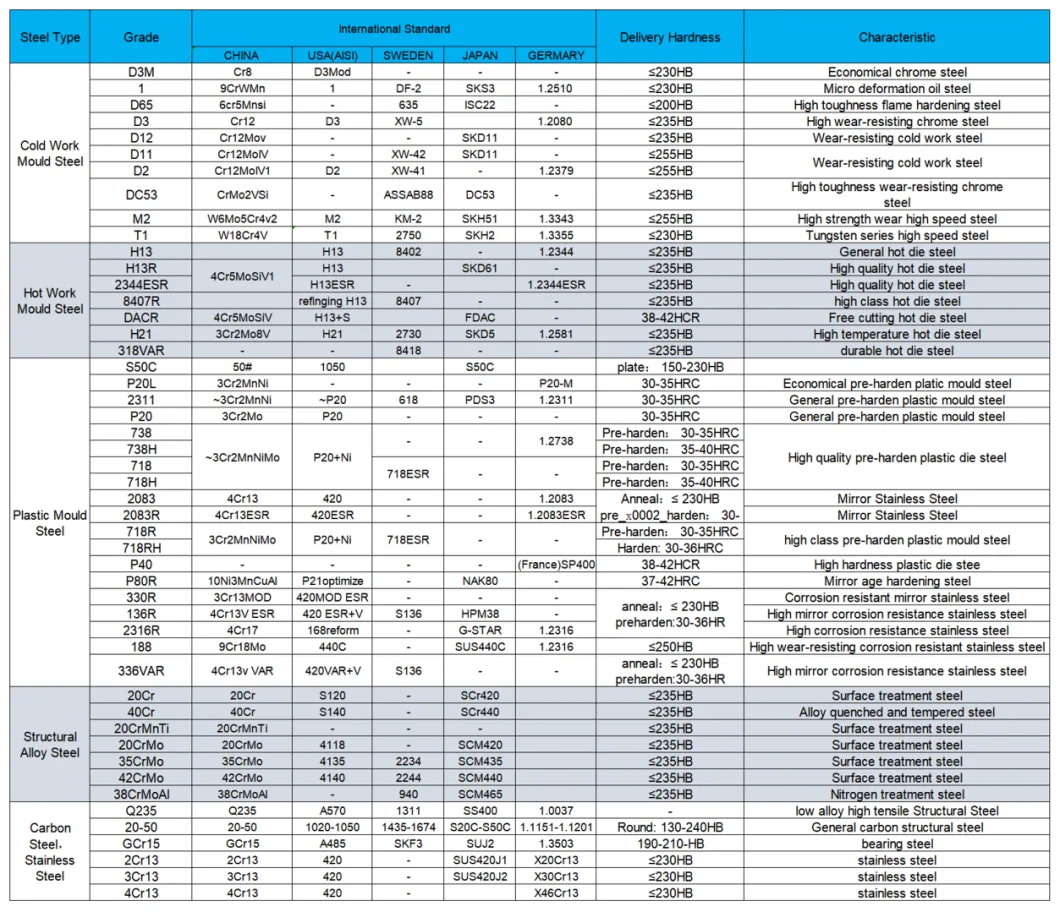

For more tool and die steel please check the list:
1) For abundant stock, 7-15 days.
2) For customized products, 15-30 days.
Loading Details:
11.FAQ:
Q1: What do you do for the control of the quality?
A1: Before loading into the container, our products will all be inspected by ultrasonic inspection. Quality Grade conforms to SEP 1921-84 E/e, D/d, C/c as per customer's request.
Q2:: What are your hot-selling products?
A2: D2/1.2379, H13/1.2344, CR12MOV, DC53, CR8, abundant stock for both plates and rounds. Competitive prices and short lead-time.
Q3: Can we visit your company and factory?
A3: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
Q4: Are you a manufacturer or merely a trader?
A4: We are a group of companies and owned manufacturer bases and trading companies. We specialized in plastic mold steel, hot work mold steel, cold work mold steel, alloy steel for mechanical, high-speed steel, etc. All material is of high quality and competitive prices.
