Q235 4140 Low carbon stainless steel round bar flat bar Q235 Tool steel Q235

Q235 4140 mild stainless steel round bar Flat Bar Q235 Tool Steel Steel Q2351.International StandardEUUSAEnglandJapanChinaRussiaS235JRA3640EESS400Q23517G1S2.Chemical Composition(Wt%) : C    Si    Mn       P     SCu   0.25-0.29   0.28    1.0

Featured Products

Q235 4140 mild stainless steel round bar Flat Bar Q235 Tool Steel Steel Q235

1.International Standard
EUUSAEnglandJapanChinaRussia
S235JRA3640EESS400Q23517G1S
2.Chemical Composition(Wt%) :

C    Si    Mn       P     SCu
   0.25-0.29   0.28    1.03     0.04    0.050.2

3.Available Size(mm) :
Flat Bar Size(mm)Round bar Size(mm)
ThicknessWidthLengthDiameterLength
10-700155-22002000-600020-2003000-550

4.Product Process:
Electric-Furnace Smelting(EF)→Ladle Furnace(LF)→Vacuum Degassing(VD)→ Argon protected ingot →Multidirectional Forging → (Concave forging →)Normalizing+Hydrogen Diffusion Annealing → Ultrasonic Flaw Detection →Queching+Tempering Prehardened

Q235 4140 Mild Stainless Steel Round Bar Flat Bar Q235 Tool Steel Steel Q235

5. Mechanical Property:

MachiningThe machinability rate of ASTM A36 is estimated to be 72%, and the average surface cutting feed of ASTM A36 is 120 ft/min. Machining of ASTM A36 steel is not as easy as that of AISI 1018 steel.
WeldingASTM A36 steel is easy to weld using any type of welding method, and the welds and joints so formed are of excellent quality.
Heat TreatmentNormalizing at 899°C - 954°C (1650°F-1750°F)
Annealing at 843°C - 871°C(1550°F-1600°F)
Stress-relieving at 677°C - 927°C(1250°F-1700°F)
Carburizing at 899°C - 927°C (1650°F-1700°F)
Hardening at 788°C - 816°C(1450°F-1500°F)

Q235 4140 Mild Stainless Steel Round Bar Flat Bar Q235 Tool Steel Steel Q235

Q235 4140 Mild Stainless Steel Round Bar Flat Bar Q235 Tool Steel Steel Q235


6. About us :

HK JIMI STEEL  Was established in 2012, located in the Shunde District of Guangdong Province, It is an import and export trading company mainly engaged in advanced special steel, die steel, alloy steel, and steel processing general machinery and equipment. The company adheres to the concept of "high quality, high requirements and good faith",

Cooperating with more than 20 famous steel mills in China, rich in spot stock of products.

Our company has a variety of processing equipment and all kinds of inspection and testing equipment, such as horizontal sawing machine, vertical sawing machine, milling machine, bilateral milling machine, precision milling machine, plane grinder and so on. The products with short producing time, excellent quality and high precision can provide a high-quality product choice for the vast number of customers at home and abroad.

Our customer group spread all over the domestic provinces and cities, abroad including Europe, the United States, Australia, the Middle East, Southeast Asia and other more than 20 countries and regions, along with over 100 long-term stable cooperation customers...Choosing Xingxiong will bring you a better experience.


PLASTIC MOULD STEEL: 1.2311, 1.2312, 1.2738, P20, 1.2083, 1.2316, NAK80, P40, 1.2738HH

HOT WORK MOULD STEEL: 1.2344, SKD61, H13, H11, FDAC, 8407

COLD WORL MOULD STEEL: SKD11, D3, SKS3, 1.2080, 1.2379, CR12MOV, O1, D2

STRUCTURAL ALLOY STEEL: 4140, 20CR, 40Cr, 35CrMo, 42CrMo, 38CrmoAi, SCM440, SCM420, 1.7225

CARBON STEEL &: Q235, Gcr15, S45C, S50C, S55C

CNC surface grinding machine, NC side boring machine, Band saw, CNC double head machine, Vertical Band saw, CNC milling machine, Double alloy saw blade, wireless remote control crane, Magnetic chuck.
Q235 4140 Mild Stainless Steel Round Bar Flat Bar Q235 Tool Steel Steel Q235

7.Our Service:

A. Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc
B. Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc

Q235 4140 Mild Stainless Steel Round Bar Flat Bar Q235 Tool Steel Steel Q235

8.Application:
Widely used in a die casting mold, hot extruding die, brass casting die, high strength plastic dies, etc.

Q235 4140 Mild Stainless Steel Round Bar Flat Bar Q235 Tool Steel Steel Q235

9. Stock:

High-quality stock for various steel flat bars and round the bar.
Alloy steel / Cold work steel / Hot work steel / Plactic mold steel and Stainless
Hot sales grade : DC53/ H13 / P20 / SCM440 / Q235,etc.

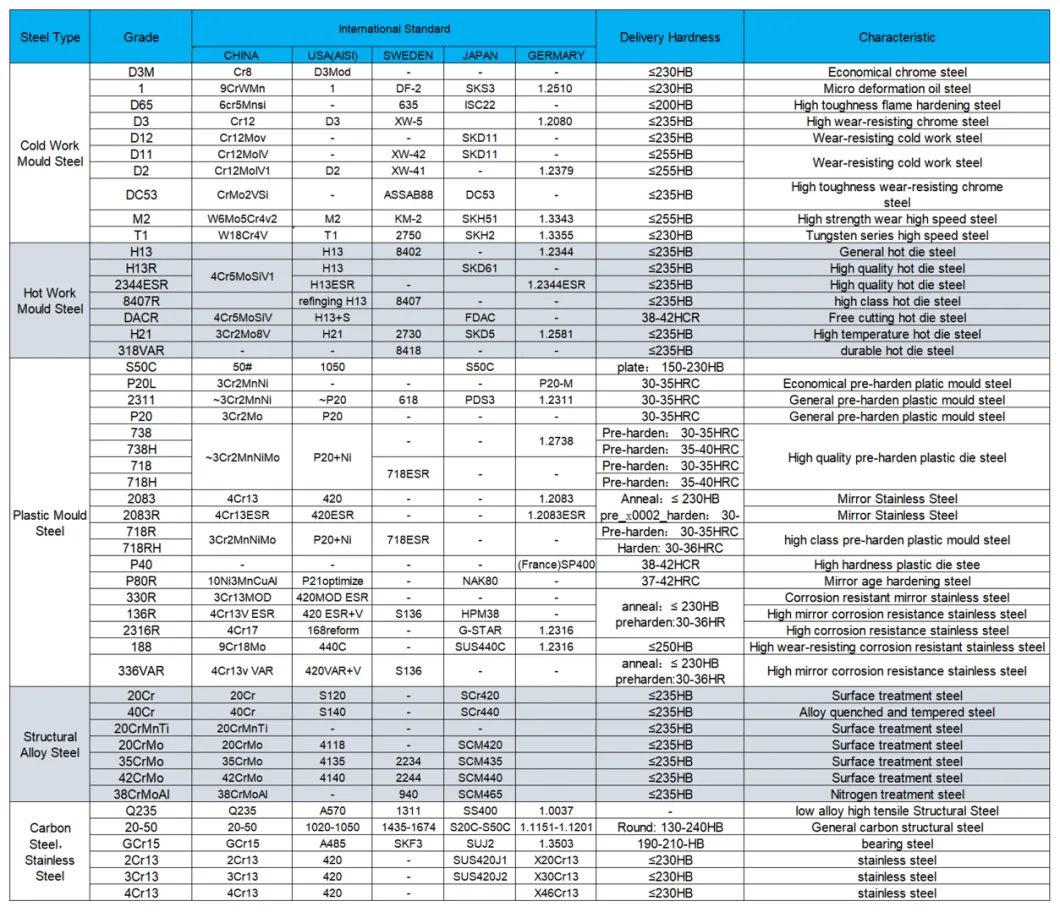

For more tool and die steel please check the list:
Q235 4140 Mild Stainless Steel Round Bar Flat Bar Q235 Tool Steel Steel Q235

10.Delivery Time

1) For abundant stock, 7-15 days.
2) For customized products, 15-30 days.


Loading Details:
Q235 4140 Mild Stainless Steel Round Bar Flat Bar Q235 Tool Steel Steel Q235



11.FAQ:

Q1: What do you do for the control of the quality?

A1:  Before loading into the container, our products will all be inspected by ultrasonic inspection. Quality Grade conforms to SEP 1921-84 E/e, D/d, C/c as per customer's request.

Q2:: What are your hot-selling products?

A2: D2/1.2379, H13/1.2344, CR12MOV, DC53, CR8, abundant stock for both plates and rounds. Competitive prices and short lead-time.

Q3: Can we visit your company and factory?
A3: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.

Q4: Are you a manufacturer or merely a trader?
A4: We are a group of companies and owned manufacturer bases and trading companies. We specialized in plastic mold steel, hot work mold steel, cold work mold steel, alloy steel for mechanical, high-speed steel, etc. All material is of high quality and competitive prices.
