Product Name: Stainless steel composite panel ,round hole perforated stainless steel sheet, stainless steel sheet price 202, corrugated stainless steel sheet, sheet stainless steel price, stainless steel sheet cutting machine, stainless steel 304 sheet.
Introduction: Metal Composite Panel is sandwich panel that is composed of 2 metal sheets (aluminum, copper, zinc or stainless steel) bonded to a thermal plastic core (or FR core).
Characteristic of metal composite panels:
Characteristics | Super flatness |
High panel rigidity | |
Light weighted | |
Economic cost | |
Various colors | |
Easy fabrication & Installation | |
Good Anti-UV property | |
Good impact resistance |
Specification of BOLLIYA Metal Composite Pane
Material | Stainless Steel |
Finish Types | Mirror, Brushed, Dull, Embossed |
Panel Thickness | 2mm, 3mm, 4mm, 5mm, 6mm upto 15mm |
Stainless Steel Skin Thickness | 0.3mm ,0.4mm, 0.5mm |
Grade of stainless steel | 304, 316, 220M |
Panel Width | 1000mm, 1200mm, 1500mm |
Panel Length | 2440mm, 4880mm, 5000mm, 5800mm |
Core | LDPE core, Mineral Filled FR core |
BOLLIYA factory at a glance:
Year Established | 1997 |
Production Lines | 1 high-speed coating line (runs at 30meter/minute) 2 ACP lamination line (runs at 6meter/minute) |
Production Capacity | 8000sq.m of 4mm panel a day (2 containers) |
Management Systems | ISO9001 / ISO14001 / ISO18001 |
Product Quality | Complies with CE, ASTM, EN, BS norms |
Production Range | Aluminum Composite Panel Copper Composite Panel Stainless Steel Composite Panel Titanium-zinc Composite Panel Aluminum Honeycomb Panel Sandwich Panels |
How do we guarantee our product quality?
We have 3 strict quality control procedures to ensure our product quality.
Step 1: We choose top quality raw materials
PVDF paints: PPG and Beckers
Aluminum Coil: Chalco
Copper Coil: Aurubis
Titanium Zinc Coil: Rheinzink
Stainless Steel Coil: NSSC, POSCO, Bao Steel
Step 2: High-tech and high precision coating line and lamination line, strict quality inspection during color coating process, lamination process and packing process
Coating process: Aluminum thickness, color deviation, gloss rate, coating thickness, T-bend, pencil hardness, paint adhesion etc, were fully inspected according to AAMA620 norms.
Lamination process: Peeling Strength, panel thickness, panel width & length, diagonal, panel surface are fully inspected accordingly to ACP industry standard.
Packing and container loading process: Visual quality re-check
Step 3: Third party tests. We cooperate with SGS, TUV, Intertek to conduct quality tests on our product. Below is test results done on our product (done by SGS):
No | Test item | Test method | Test condition | Result |
1 | Coating thickness | ASTM D7091-05 | - | 27.0µm |
2 | Gloss | ASTM D523-08 | 60° geometry | 27 |
3 | Pencil hardness | ASTM D3363 -05(2011) | Pencil: Mitsubishi® | scratch hardness: 2H (see note 1) |
4 | Bend resistance | ASTM D3363 -05(2011) method A | - | No cracking at the minimum mandrel diameter(3mm) |
5 | Adhesion | ASTM D7091-05e2 method B | Tape: Permacel 99 Space: 1mm | Classification: 5B (see note 2) |
6 | Impact resistance | ASTM D2794 -93(2010) | Diameter of the punch: 12.7mm Impact model: intrusion | Impact failure end point: 1.3kg·m |
7 | Abrasion resistance | ASTM D968- 05(2010) method A | Litres of abrasive: 76.0L Coating thickness: 0.99mil | Abrasion resistance: 76.8L/mil |
8 | Water resistance | ASTM D870-09 | Immersion, 99ºC,2h | Appearance: No visual change |
9 | Dirty resistance | ASTM D2064 -91(2008) | Cheesecloth: 40×40mm 4 intact layers No. 8 rubber stopper lead: 500g condition: 60ºC,1h | Numberical value:10 (see note 3) |
10 | Alkali resistance | ASTM D1308- 02(2007) clause 7.2 | 10 drops of 1%(m/m)NaOH Spot test, 16h (see note 4) | Appearance: No visual change |
11 | Acid resistance | 10 drops of 1%(m/m)H2SO4 Spot test, 16h (see note 4) | Appearance: No visual change | |
12 | Oil resistance | Edible oil | Appearance: No visual change | |
13 | Solvent resistance | ASTM D5402 -06(2011) method A | Solvent: MEK Rub rate: 1cycle/s Number of double rubs:25cycles (see note 4) | Appearance: No visual change |
14 | Color retention | AAMA 2605-2005 7.1 | Take a random point on the sample as color standard | E*ab=0.20 (See note 5) |
15 | Adhesion reverse impact 1/6" crosshatch | With reference to ASTM D3359-09e2 method B and client's requirement | Diameter pf the punch: 12.7mm impact model: extrusion Space: 1/6inch Tape: Permacel 99 | Classification: 5B (See note 2) |
16 | Coefficient of linear thermal expansion | ASTM D696-08 | Test temperature range : Ramp 10ºC/min from -30ºC to 30ºCPurge gas: Nitrogen (N2), Purity 99.995% Flow rate: 50ml/min. Measurement Direction: Thickness | 193.8×10-6µm/m·ºC (see test spectrum) |
17 | Density | ASTM D792-08 method B | Absolute alcohol, 23±0.5ºC | 1.449g/cm3 |
18 | Tensile strength | ASTM D638-10 | Specimen: Type I specimen thickness: 3.95mm Testing speed; 50mm/min | 61.6MPa |
19 | Flexural strength | ASTM D790-10 Procedure A and client's requirement | Specimen: 128×13.17×3.96mm Testing speed: 1.7mm/min Span: 64mm | 128MPa |
20 | Flexural modulus | 11720MPa | ||
21 | Sheer strength | ASTM D732-10 | Specimen thickness: 3.94mm Punch diameter: 25.0mm Separation speed: 1.3mm/min | 34.2MPa |
22 | Shear resistance | 10594N | ||
23 | 180° Peel strength | ASTM D903-98(2010) | Specimen width: 25mm Testing speed: 152.4mm/min | 0.95kg/mm |
24 | Peel torque | With reference to ASTM D1781-98(2004) and client's requirement | Condition: Dip in 100ºC boilding water, 20min→ 23±2ºC, 50±5%RH, 24h sSpecimen width: 25.0mm Testing speed: 25mm/min | 14.6kg/mm |
25 | Heat deflection temperature | With reference to ASTM D648-07 Method B and client's requirement | Specimen width: 13.52mm Specimen depth:4.05mm Rate of temperature: 120ºC/h Load: 1.82MPA | 97.3ºC(see note 6) |
Packing and Loading:
Packing Method | Loading Quantity for 3mm | Loading Quantity for 4mm |
Wooden Pallet | 1500pcs | 1100pcs |
In Bulk (nude packing) | 2000pcs | 1400pcs |

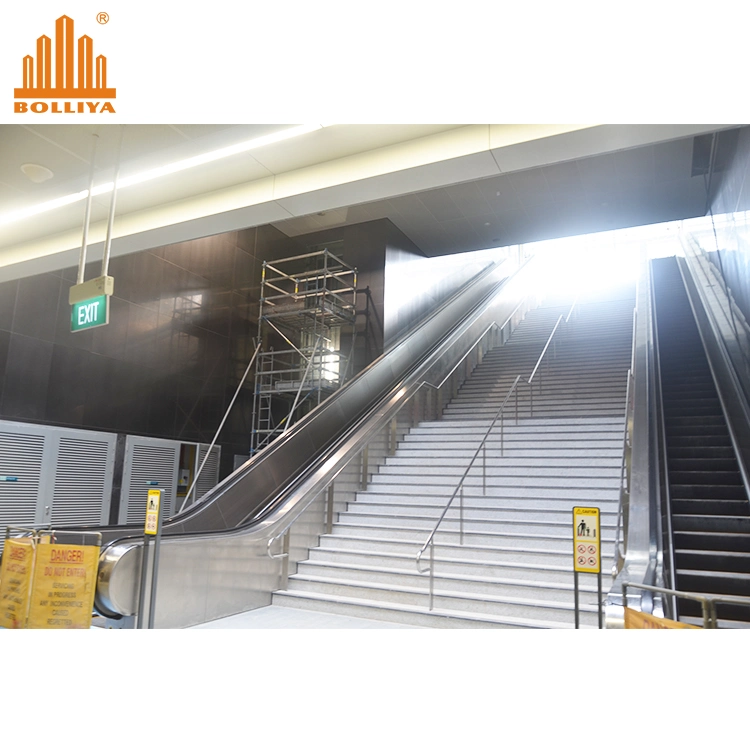

Typical Project List:
Product | Name | Quantity |
Aluminum | Beijing National Conventional Center | 100,000 m2 |
Linghai Pearl Building | 8,000m2 | |
Melbourne Airport | 20,000m2 | |
Costa Rica Liberia Airport | 10,000m2 | |
Malaysia Lingbang Plaza | 30,000m2 | |
Guangzhou Asian Steel Centre | 3,000m2 | |
Copper | 626 1st Avenue Manhattan | 35,000m2 |
Tongling Museum | 2,000m2 | |
AHQ Army Complex Bangladesh | 1,500m2 | |
Guangxi Tianlong Apartment | 3,000m2 | |
Elegant Residential Apartment France | 1,000m2 | |
Guangzhou Dayi Villa | 1,000m2 | |
Stainless Steel | Malaysia Exim Bank | 3,000m2 |
Palacio de Hierro de Jalisco, Mexico | 5,000m2 | |
R&F Building Guangzhou | 10,000m2 | |
VTB Bank Vietnam | 35,000m2 |
